IEPE voltage output, insulated from ground, impact range up to 20,000g

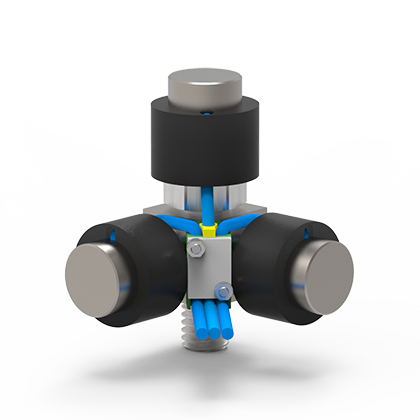

Adopting a new structural design with multiple patents

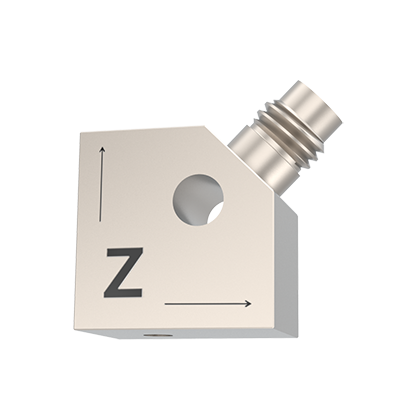

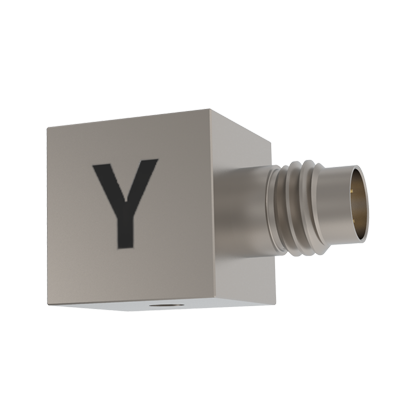

Triaxial Impact Measurement with High-Stiffness Bolt Installation
| Model (High-end) | J10511 | J10518 | J10519 | J10512 | J10505 | J10509 | J10506 | J10536 | J10539 | J10535 | J10502 | J10503 | |

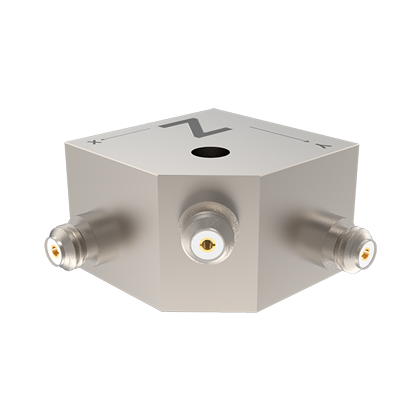

| Feature Description | Stainless steel rectangle, M4 through-hole conical mounting bolt, 3xM5 connectors | Titanium alloy square, M4 through-hole mounting bolt, 3xM5 connectors | Titanium alloy casing, through-hole mounting bolts, four-core connector output | Titanium alloy cube shell; quad-core nozzle output; adhesive/screw installation | Installation of ground insulation, overall high rigidity design M6 Through-Hole Taper Mounting Bolt | ||||||||
| Dimensions mm (Length x Width x Height) | 20x13.5x11 | 20x13.5x11 | 15x15x10 | 15x15x10 | 15x15x10 | 15x15x10 | 15x15x10 | 9.5 cubic meters | 10.8 cubic meters | 10.8 cubic meters | 26x11x34 (3D) | ||
| Sensitivity (mV/g) | 0.25 | 0.5 | 1 | 2 | 0.5 | 1 | 2 | 1 | 1 | 2 | 0.25 | 0.5 | |
| Measurement Range (g peak) | ±20000 | ±10000 | ±5000 | ±2500 | ±10000 | ±5000 | ±2500 | ±5000 | ±5000 | ±2500 | ±20000 | ±10000 | |
| Amplitude Linearity (Full Scale) | ±3% | ±3% | ±1% | ±1% | ±3% | ±1% | ±1% | ±1% | ±2% | ±2% | ±3% | ±3% | |
| Broadband Resolution (g rms) | 0.02 | 0.01 | 0.005 | 0.0025 | 0.01 | 0.005 | 0.0025 | 0.005 | 0.005 | 0.0025 | 0.02 | 0.01 | |
| Frequency Range | ±5%(Hz~kHz) | —— | —— | —— | —— | —— | —— | —— | —— | —— | —— | —— | —— |
| ±10%(Hz~kHz) | 10~11 | 10~10 | 5~10 | 5~10 | 5~10 | 5~10 | 5~10 | 5~10 | 5~10 | 5~10 | 5~10 | 5~10 | |
| Installation Resonant Frequency (kHz) | ≥70 | ≥70 | ≥70 | ≥70 | ≥70 | ≥70 | ≥70 | ≥70 | ≥75 | ≥70 | ≥70 | ≥70 | |
| Transverse sensitivity | ≤5% | ||||||||||||
| Power Supply (VDC) | 18~30 | ||||||||||||
| Supply Current (mA) | 2~20 | ||||||||||||
| Output Impedance (Ω) | ≤100 | ||||||||||||
| DC Bias Voltage (V) | 8~12 | ||||||||||||
Electrical Noise Power Spectral Density (μg/√Hz) | 10Hz | 4800 | 2400 | 1200 | 600 | 2400 | 1200 | 600 | 1200 | 1200 | 600 | 4800 | 2400 |
| 100Hz | 1600 | 800 | 400 | 200 | 800 | 400 | 200 | 400 | 400 | 200 | 1600 | 800 | |
| 1000Hz | 1200 | 600 | 300 | 150 | 600 | 300 | 150 | 300 | 300 | 150 | 1200 | 600 | |
| Install Insulation Resistance | —— | —— | —— | —— | —— | —— | —— | —— | —— | —— | ≥1x108 | ≥1x108 | |
| Maximum Withstand Acceleration Value (g peak) | —— | —— | 6000 | 3500 | —— | 6000 | 4000 | 6000 | 6000 | 3000 | —— | —— | |
| Maximum Withstand Impact Value (g peak) | 25000 | 15000 | 10000 | 6000 | 13000 | 8000 | 5000 | 8000 | 8000 | 5000 | 25000 | 13000 | |
| Operating Temperature (°C) | -50~125 | ||||||||||||
| Sealing Form | Laser Welding | ||||||||||||
| Sensitive Materials | High-end Piezoelectric Ceramic/Shear | ||||||||||||
| Case material | Stainless Steel | Titanium Alloy | Titanium Alloy | ||||||||||
| Installation Method | Through-hole M4 conical bolt installation | Adhesive/M2.5 internal threaded screw hole (with insulated mounting base 552130) | M6x0.75 Tapered Bolt Installation | ||||||||||
| Weight (grams) | 11.5 | 11.5 | 11.5 | 11.5 | 7.7 | 7.7 | 7.7 | 4.9 | 5.0 | 5.0 | 19 | 19 | |
| Sensor Output Format | M5x3 nozzle on the same side | 1/4"-28 Quad Output | 1/4"-28 Quad Output | Twin Cable | |||||||||
| Cable end connector type | M5—BNC(511xx12)；1/4"-28 Quad Connector—3xBNC（516xx17）；1/4"-28 Quad Connector—1/4"-28 Quad Adapter（516xx15） | ||||||||||||
Common Cable Options (Cable Description/Model) | *M5 to BNC Connector at Both Ends of the Cable: Φ3mm PVC Cable (5114312); Φ3mm TPV Cable (5112312); Φ2mm PTFE High-Temperature Cable (5111212) *Cable end connectors 1/4"-28 quad connector——3xBNC: Φ3mm PVC quad cable (5161417); Φ3mm TPV cable (5163417); Φ3mm PTFE high-temperature cable (5161517) *Cable end connectors 1/4"-28 four-core connector——1/4"-28 four-core nozzle: Φ3mm PVC four-core cable (5161415); Φ3mm TPV cable (5163415); Φ3mm PTFE high-temperature cable (5161515) | ||||||||||||
| Standard Attachments | ①M4 mounting bolts (through-hole mounting), M2.5-M5 mounting screws (cube); ②Standard: 1-meter TPV four-core cable (output four-core connector), standard 3x1-meter TPV coaxial cables (output 3xM5 connectors); ③Factory calibration report | ||||||||||||
| Other Options | *Model + "E": Optional output nozzle with 10-32 UNF thread *Model + "F": Optional waterproof integrated cable (IP68) (Note: The high-frequency cutoff frequency of the frequency response may change due to the integrated cable. The specific high-frequency cutoff frequency will be based on the sensor calibration report.) | ||||||||||||
