Miniaturized Double-Layer Shielding Design
Equipment vibration testing for various harsh environments
When combined with the 66 series signal conditioning modules, it can achieve 0~5VDC and 4~20mA industrial control signal modes

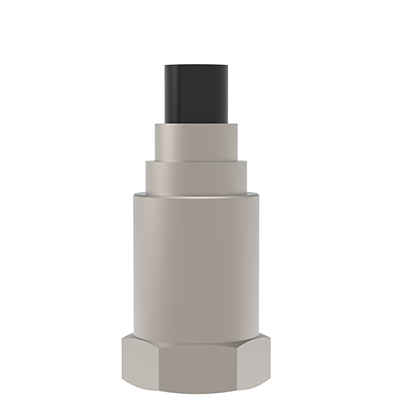

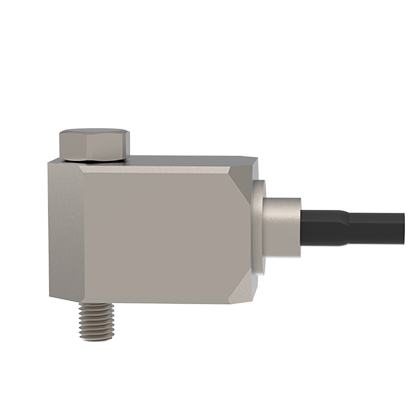

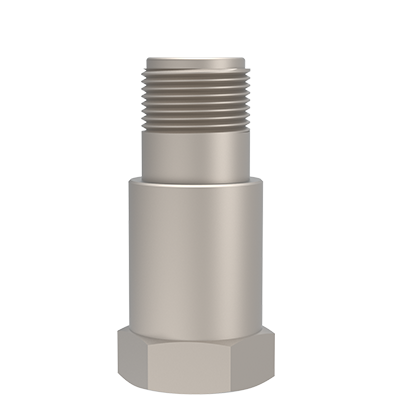

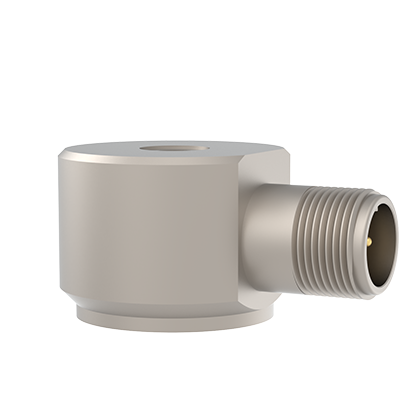

| Model | No Armor | 12120 | 14120 | 11117 | -- | 12117 | -- | 14119 | 14226 | -- | 14222 |
| With armor | -- | -- | -- | 11118 | -- | 12118 | -- | -- | 14228 | -- | |
| Feature Description | Top Dual Core Nozzle C-5015 | TPV Dual-Core Coaxial Cable | PU Twin-Core Coaxial Cable | High-temperature continuous cable | Side Dual Core Connector C-5015 | ||||||
| Dimensions mm (Hex x Height/Length x Width x Height) | 15.3x45 | 20x47 | 15.3x45 | 15.3x45 | 15.3x45 | 15.3x45 | 20x69 | 33.5x25x25 | 33.5x25x25 | 34.7x25 | |
| Sensitivity (mV/g) | 20 | 100 | 10 | 10 | 20 | 20 | 100 | 100 | 100 | 100 | |
| Measurement Range (g peak) | ±250 | ±50 | ±500 | ±500 | ±250 | ±250 | ±50 | ±50 | ±50 | ±50 | |
| Amplitude Linearity | ≤±1% | ||||||||||
| Broadband Resolution (g rms) | 0.00025 | 0.00005 | 0.0005 | 0.0005 | 0.00025 | 0.00025 | 0.00005 | 0.00005 | 0.00005 | 0.00002 | |
| Frequency Range | ±5%(Hz~kHz) | 1~8 | 1~8 | 1~9 | 1~9 | 1~8 | 1~8 | 1~8 | 1~7 | 1~7 | 1~6 |
| ±10%(Hz~kHz) | 0.5~11 | 0.5~10 | 0.5~11 | 0.5~11 | 0.5~10 | 0.5~10 | 0.5~10 | 0.5~8 | 0.5~8 | 0.5~7 | |
| Installation Resonant Frequency (kHz) | ≥39 | ≥25 | ≥42 | ≥42 | ≥39 | ≥39 | ≥25 | ≥28 | ≥28 | ≥22 | |
| Transverse sensitivity | ≤5% | ||||||||||
| Power Supply (VDC) | 18~30 | ||||||||||
| Supply Current (mA) | 2~20 | ||||||||||
| Output Impedance (Ω)） | ≤100 | ||||||||||
| DC Bias Voltage (V) | 8~12 | ||||||||||
Electrical Noise Power Spectral Density (μg/√Hz) | 10Hz | 60 | 12 | 120 | 120 | 60 | 60 | 12 | 12 | 12 | 12 |
| 100Hz | 20 | 4 | 40 | 40 | 20 | 20 | 4 | 4 | 4 | 4 | |
| 1000Hz | 15 | 3 | 50 | 50 | 15 | 15 | 3 | 3 | 3 | 3 | |
| Install Insulation Resistance | ≥1x108 | ||||||||||
| Maximum Withstand Acceleration Value (g peak) | 2000 | 400 | 3000 | 3000 | 2000 | 2000 | 400 | 400 | 400 | 400 | |
| Maximum Withstand Impact Value (g peak) | 5000 | 1000 | 6000 | 6000 | 5000 | 5000 | 1000 | 1000 | 1000 | 1000 | |
| Operating Temperature (°C) | -50~125 | ||||||||||
| Sealing Form | Laser Welding | ||||||||||
| Sensitive Materials | Piezoelectric Ceramic/Shear | ||||||||||
| Case material | Stainless Steel | ||||||||||
| Installation Method | M5 Internal Threaded Hole | Through-hole M6 bolt installation | |||||||||
| Weight (grams) | 28 | 62 | 28 | 30 | 28 | 30 | 60 | 85 | 85 | 130 | |
| Sensor Output Format | Coaxial cable + BNC (500xx12); Twin-core C-5015 (520xx00/559xx00) | ||||||||||
Common Cable Options (Cable Description/Model | *Cable end connectors MIL-5015 (straight) - empty; 10m Φ5mm high-temperature twisted pair cable (red) (5201900-10m); 5m/10m PU twisted pair cable (black) (5591800-5m/10m) *Cable end connectors MIL-5015 (right-angle elbow) - Empty: 3m Φ5mm high-temperature twisted pair cable (red) + armor (5591900-3m + armor); 3m PU twisted pair cable (black) + armor (5591800-3m + armor); 5m/10m PU twisted pair cable (black) (5591800-5m/10m) | ||||||||||
| Standard Attachments | ①M5-M6 mounting screws (M5 mounting internal threaded holes), M6 mounting bolts (through-hole mounting); ②Standard configuration: 1-meter integrated TPV (or PU) twisted pair shielded cable, 1-meter integrated high-temperature twisted pair shielded cable, Note: For non-integrated cable sensors, connecting cables need to be ordered separately; ③Factory calibration report | ||||||||||
