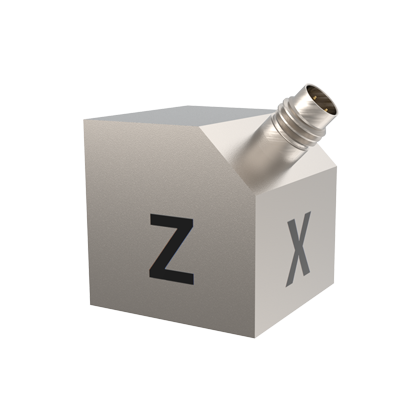

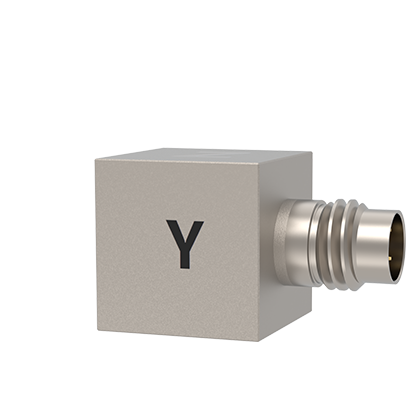

Vibration testing for general mechanical components and medium to large-sized parts
Suitable for test objects requiring adhesive installation of sensors
| Model | Standard | 10540 | 11540 | 12540 | 13540 | 14540 | 15540 | 16540 |
| High-end | J10530 | J11530 | J12530 | J13530 | J14530 | J15530 | J16530 | |
| Feature Description | Titanium alloy casing; other options; low-frequency extension, high-temperature environment, waterproof integrated cable, M2.5 adhesive. | |||||||
| Dimensions mm³ (cubic) | 10.8 | 10.8 | 10.8 | 12.7 | 14 | 18 | 23 | |
| Sensitivity (mV/g) | 5 | 10 | 20 | 50 | 100 | 200 | 500 | |
| Measurement Range (g peak) | ±1000 | ±500 | ±250 | ±100 | ±50 | ±25 | ±10 | |
| Amplitude Linearity | ≤ ±1% | |||||||
| Broadband Resolution (g rms) | 0.001 | 0.0005 | 0.00025 | 0.0001 | 0.00005 | 0.000025 | 0.00001 | |
| Frequency Range | ±5%（Hz~kHz） | 1~10 | 1~8 | 1~8/X:1~6 | 1~7/X:1~5 | 1~5 | 1~4 | 1~3 |
| ±10%（Hz~kHz） | 0.5~11 | 0.5~10 | 0.5~10/X:0.5~7 | 0.5~9/X:0.5~7 | 0.5~6 | 0.5~6 | 0.5~4 | |
| Installation Resonant Frequency (kHz) | ≥70 | ≥50 | ≥70 | ≥38 | ≥25 | ≥20 | ≥8 | |
| Transverse sensitivity | ≤5% | |||||||
| Power Supply (VDC) | 18~30 | |||||||
| Supply Current (mA) | 2~20 | |||||||
| Output Impedance (Ω)） | ≤100 | |||||||
| DC Bias Voltage (V) | 8~12 | |||||||
Electrical Noise Power Spectral Density (μg/√Hz) | 10Hz | 240 | 120 | 60 | 24 | 12 | 6 | 2.4 |
| 100Hz | 80 | 40 | 20 | 8 | 4 | 2 | 0.8 | |
| 1000Hz | 60 | 30 | 15 | 6 | 3 | 1.5 | 0.6 | |
| Install Insulation Resistance | —— | —— | —— | —— | —— | —— | —— | |
| Maximum Withstand Acceleration Value (g peak) | 2500 | 2000 | 1200 | 800 | 400 | 200 | 80 | |
| Maximum Withstand Impact Value (g peak) | 6000 | 5000 | 3000 | 2000 | 1000 | 500 | 200 | |
| Operating Temperature (°C) | -50~125 | |||||||
| Sealing Form | Laser Welding | |||||||
| Sensitive Materials | Standard/High-end Piezoelectric Ceramic/Shear | |||||||
| Case material | Titanium Alloy | |||||||
| Installation method/Y, Z-axis direction screw holes | Adhesive/M2.5, compatible with 552130 | Adhesive/M3, compatible with 552130 | ||||||
| Weight (grams) | 4.2 | 4.5 | 4.5 | 8.8 | 12.5 | 30.5 | 72 | |
| Sensor Output Format | 1/4"-28 Four-Pin Connector | |||||||
| Cable end connector type | 1/4"-28 Quad Connector – 3xBNC (516xx17); 1/4"-28 Quad Connector – 1/4"-28 Quad Connector (516xx15) | |||||||
Common Cable Options (Cable Description/Model) | * Cable end connectors 1/4"-28 quad connector—3xBNC: Φ3mm PVC quad cable (5161417); Φ3mm TPV cable (5163417); Φ3mm PTFE high-temperature cable (5161517) * Cable end connectors 1/4"-28 four-core connector—1/4"-28 four-core nozzle: Φ3mm PVC four-core cable (5161415); Φ3mm TPV cable (5163415); Φ3mm PTFE high-temperature cable (5161515) | |||||||
| Standard Attachments | ①M2.5-M5 mounting screws; ②Standard 1-meter PVC four-core cable; ③Factory calibration report | |||||||
| Other Options | * Model + "E": Optional output 1/4-28 four-pin connector in the form of thick pins * Model + "H": Upgraded high-temperature sensor, operating temperature -50-160℃; the original size of 10.8mm cube for 1X540/J1X530 has been adjusted to a 12mm cube. * Model + "F": Optional waterproof integrated cable (IP68) (Note: The high-frequency cutoff frequency of the frequency response will change due to the integrated cable. The specific high-frequency cutoff frequency will be based on the sensor calibration report.) With the optional waterproof integrated cable, the original outer dimensions of 10.8mm are adjusted to 12mm.2 * Model + "L": Low-frequency extension, 5% -- 0.5 Hz | |||||||
