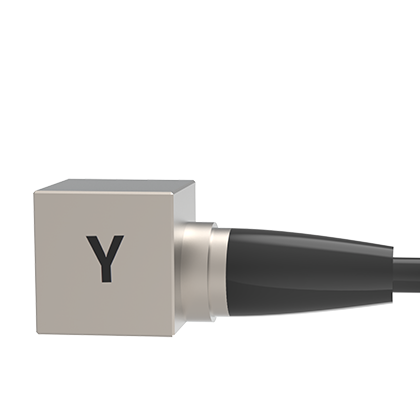

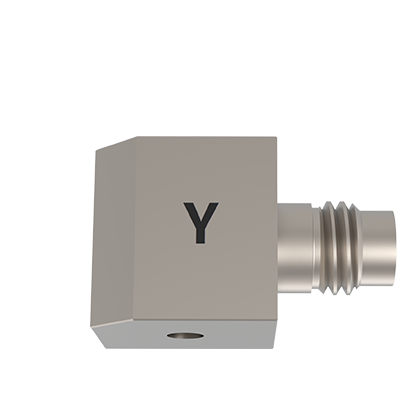

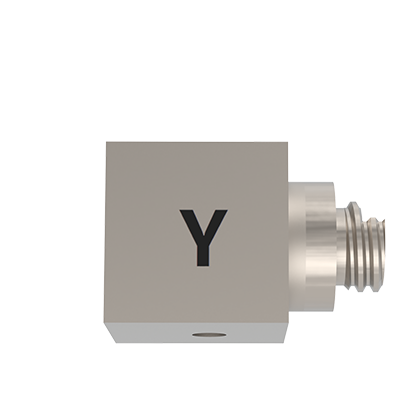

Vibration Testing of Small Mechanical Components and Parts
Suitable for test objects requiring adhesive installation of sensors
| Model (High-end) | J10522 | J10523 | J10533 | J11533 | J12533 | J13533 | J14533 | J15533 | J16533 | J17533 | |
| Dimensions mm³ (cubic) | 6.2 | 8 | 9.5 | 9.5 | 9.5 | 11 | 12 | 16.5 | 19 | 23 | |
| Feature Description | Small titanium alloy housing, minimum cube size is 6.2x6.2x6.2mm | ||||||||||
| Sensitivity (mV/g) | 4 | 15 | 5 | 10 | 20 | 50 | 100 | 200 | 500 | 1000 | |
| Measurement Range (g peak) | ±1250 | ±500 | ±1000 | ±500 | ±250 | ±100 | ±50 | ±25 | ±10 | ±5 | |
| Amplitude Linearity | ≤±1% | ||||||||||
| Broadband Resolution (g rms) | 0.001 | 0.0003 | 0.001 | 0.0005 | 0.00025 | 0.0001 | 0.00025 | 0.0003 | 0.00001 | 0.000005 | |
| Frequency Range | ±5%(Hz~kHz) | 1~12/X:1~10 | 1~14/X:1~10 | 1~10/X:1~8 | 1~10/X:1~7 | 1~9/X:1~7 | 1~8/X:1~6 | 1~8/X:1~6 | 1~5 | 1~3 | 1~2.5 |
| ±10%(Hz~kHz) | 0.5~13/X:0.5~11 | 0.5~15/X:0.5~11 | 0.5~11/X:0.5~9 | 0.5~12/X:0.5~8 | 0.5~11/X:0.5~8 | 0.5~10/X:0.5~8 | 0.5~9/X:0.5~8 | 0.5~6 | 0.5~4 | 0.5~3 | |
| Installation Resonant Frequency (kHz) | ≥50 | ≥61 | ≥70 | ≥70 | ≥52 | ≥45 | ≥38 | ≥20 | ≥8 | ≥13 | |
| Transverse sensitivity | ≤5% | ||||||||||
| Power Supply (VDC) | 18-30 | ||||||||||
| Supply Current (mA) | 2-20 | ||||||||||
| Output Impedance (Ω) | ≤ 100 | ||||||||||
| DC Bias Voltage (V) | 8- 12 | ||||||||||
Electrical Noise Power Spectral Density (μg/√Hz) | 10Hz | 240 | 120 | 240 | 120 | 60 | 24 | 12 | 6 | 2.4 | 1.2 |
| 100Hz | 80 | 40 | 80 | 40 | 20 | 8 | 4 | 2 | 0.8 | 0.4 | |
| 1000Hz | 60 | 30 | 60 | 30 | 15 | 6 | 3 | 1.5 | 0.6 | 0.3 | |
| Install Insulation Resistance | —— | ||||||||||
| Maximum Withstand Acceleration Value (g peak) | 1200 | 2000 | 2500 | 2000 | 1200 | 800 | 400 | 200 | 80 | 40 | |
| Maximum Withstand Impact Value (g peak) | 3000 | 5000 | 6000 | 5000 | 3000 | 2000 | 1000 | 500 | 200 | 100 | |
| Operating Temperature (°C) | -50 to 125 | ||||||||||
| Sealing Form | Laser Welding | ||||||||||
| Sensitive Materials | High-end Piezoelectric Ceramic/Shear | ||||||||||
| Case material | Titanium Alloy | ||||||||||
| Installation method (adhesive/Y, Z-axis threaded holes) | Adhesive | Adhesive/M2 | Adhesive/M2.5 | Adhesive/M3 | |||||||
| Weight (grams) | 1 | 2 | 3.3 | 3.3 | 3.4 | 8.6 | 9 | 30 | 35 | 45 | |
| Sensor Output Format | Twin Cable | 8-36 | 1/4"-28 | ||||||||
| Cable end connector type | 8-36 Connector—3xBNC (556xx17); 1/4"-28 Quad Connector—3xBNC (516xx17); 1/4"-28 Quad Connector—1/4"-28 Quad Plug (516xx15) | ||||||||||
Cable Options (Cable Description/Model) | ∗ Cable end connectors 1/4"-28 quad connector—3xBNC: Φ3mm PVC quad cable (5161417); Φ3mm TPV cable (5163417); Φ3mm PTFE high-temperature cable (5161517) ∗ Cable end connectors 1/4"-28 four-core connector—1/4"-28 four-core nozzle: Φ3mm PVC four-core cable (5161415); Φ3mm TPV cable (5163415); Φ3mm PTFE high-temperature cable (5161515) ∗ Cable end connectors 8-36 connectors—3xBNC: Φ2mm TPV cable (5565417); Φ2mm PTFE high-temperature cable (5565517) | ||||||||||
| Standard Attachments | ①M2.5-M5 / M3-M5 mounting screws; ②Standard 1-meter PVC four-core cable; ③Factory calibration report; ④Equipped with alumina insulation base | ||||||||||
| Other Options | ∗ Model + "E": Optional output 1/4-28 four-pin connector in a thick pin configuration | ||||||||||
